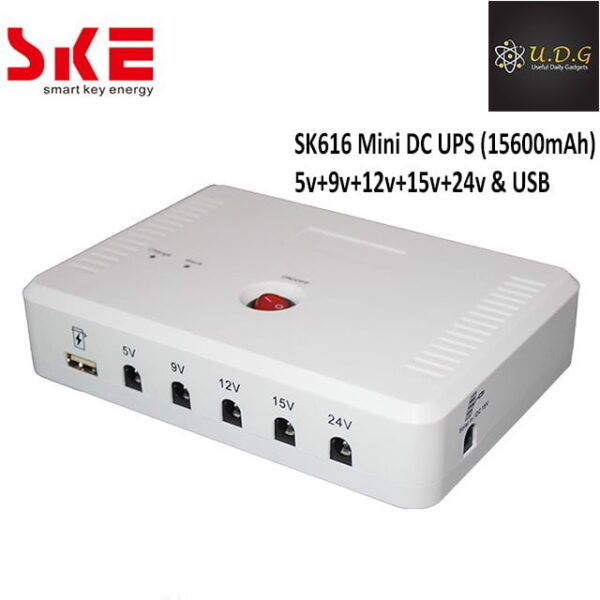

SK616 Mini DC UPS for Wifi Router + ONU + IP cam/CC cam (15600mAh with mega 5 output)
What is SKE Mini UPS ?
SKE ups is a versatile mini uninterruptible power supply which can provide you a longer power backup than any other traditional mini ups during load shedding.
Therefore you can easily run WIFI Router, ONU/MC, IP Cam/CC Cam, Door lock, Finger print scanner and so on with it. Mobile phones & all kind of Tab can be charged easily.It is capable to give you a longer power backup more than you expect up-to 18hrs as per your devices power consumption.
However, this is commonly used for seamless internet connection with Wifi Router +Onu/MC/Modem + switch during load shedding. It can also Protect your valuable router and ONU / MC from lightning & power SURGE using the SKE mini dc ups.
•Portable
•With Li battery 15600mAH
•DC 5v,9v/12v15v/24v selectable
•With USB port
•Input Voltage :100V – 240V AC
•Small DC communication equipment, network peripherals such as: Modem, routers etc.
•Constant DC output, long backup time, smart chip control, zero transition.
Model | SK- 616 | |
Input voltage range | 100v~300v AC | |
Output Voltage (Optional) | 5V/9V/12V/15V/24V DC | |
Output Power | 24W | |
Battery Type | Lithium battery | |
QTY. & Capacity Of Battery | 2600mAH*6 | |
Rated charge current | 1A | |

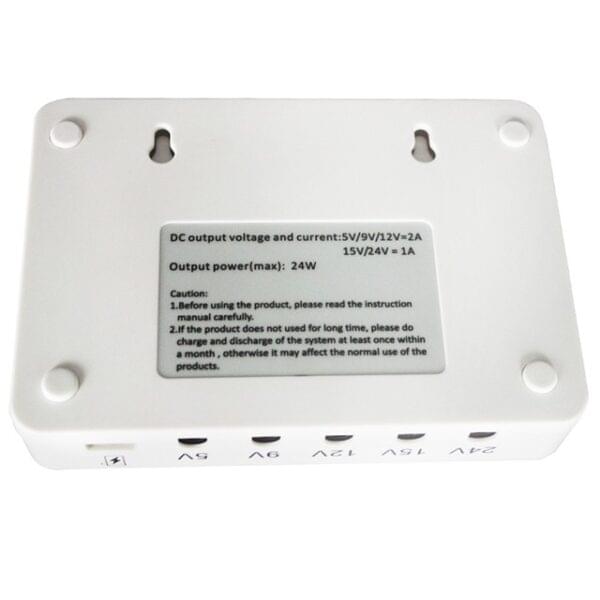

Rated discharge current | 5V/9V/12V, 2A;15v/24V, 1A | |
System voltage | 11.1V | |
Over pressure protection | 12.6V | |
Under voltage | 11.4V | |
Over- discharge voltage | 10.5V | |
Protection circuit | Overcharge protection(system protection) | |
Overload and short circuit protection(battery protection) | ||
Operating temperature | -10℃+55℃ | |
Net Weight(kg) | 0.31 | 0.455 |

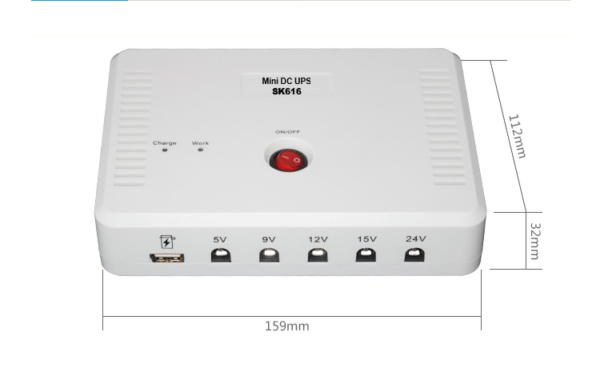

Unit Dimension(mm) | 159*112*32 |
